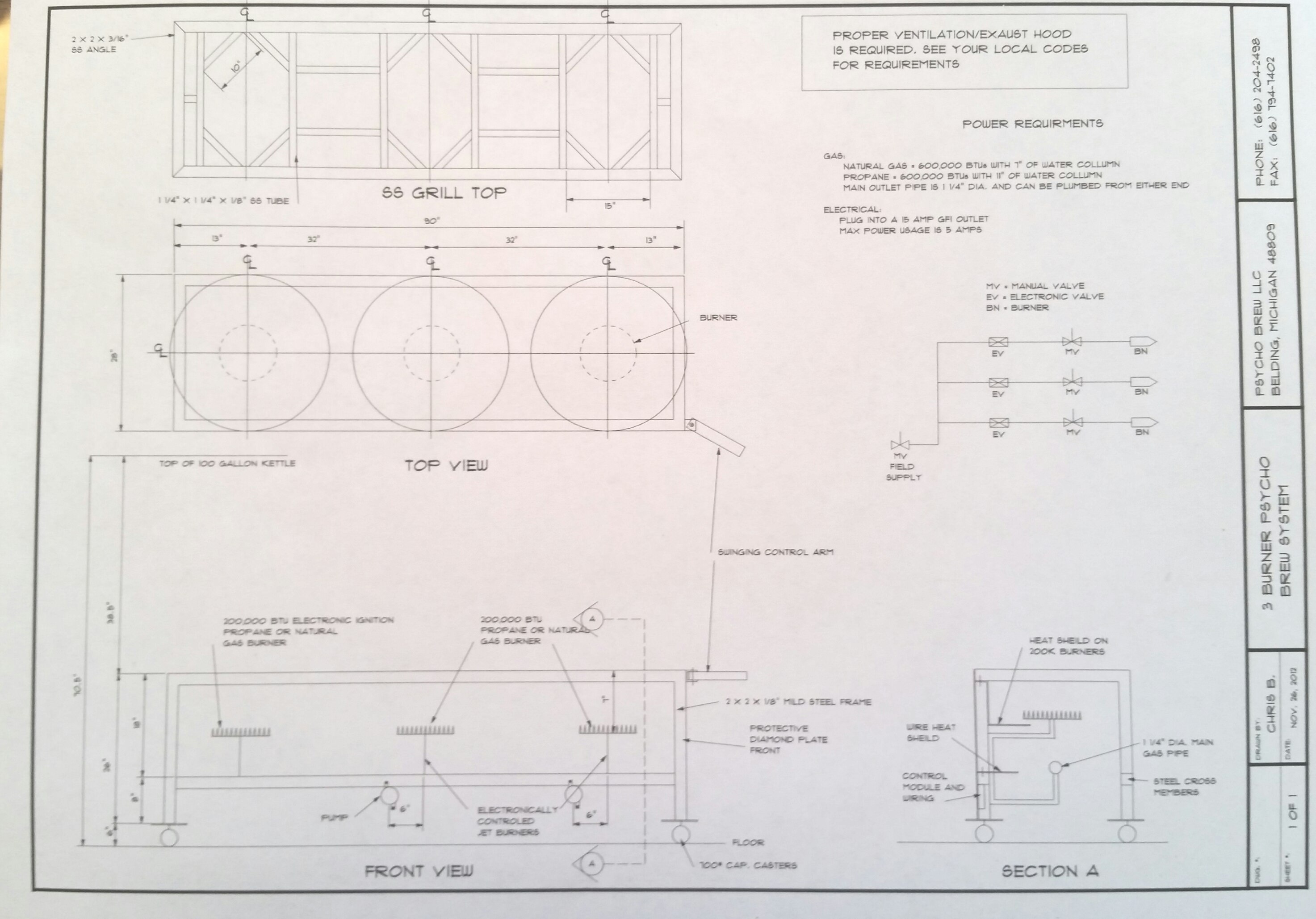

MADNESS 100 – Our 2.5 bbl 3-Burner Pilot Brew System Features:
- 1 – 100 gallon American-made mash kettle with false bottom and sparge arm
- 1 – 100 gallon American-made boil kettle
- 1 – 100 gallon American-made HLT
- Clamp and hose kit
- 70 plate wort chiller w/oxygen stone and thermometer
- Fully automated control panel
- 2 – 1/5 HP recirculating pumps W/stainless steel heads
- Full stainless steel frame and burner top
- Aluminum diamond-plate protective front
- Heavy-duty casters
- 8-10 week built time
- Optional grain out manway and whirlpool tangential
- Contact chris@psychobrew.com for a formal quote
| Weight | 710 lbs |
|---|
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Related products
This kettle will be the last kettle you will ever need buy. Built to last. The quality and construction is top notch
This kettle will be the last kettle you will ever need buy. Built to last. The quality and construction is top notch
This is a fully turnkey 3.5 bbl pilot brew system that is ready to rock out some brews right out of the box!
6" diameter This high heat, cast iron burner ring has 10 jet nozzles, is designed for use with low pressure NATURAL GAS and can develop 100,000 BTU/HR of heat. Gas inlet is 3/8" NPT. All burners are bench tested before being shipped.
8" diameter This high heat, cast iron burner ring has 20 jet nozzles, is designed for use with low pressure PROPANE and can develop 200,000 BTU/HR of heat. Gas inlet is 1/2" NPT. All burners are bench tested before being shipped.
- TC clamps and gaskets
- Lid with 1.5 TC ferrules inside and out
- 1" Tri-Clamp Ecapsulated ball valves
- Tri clamps with gaskets
- 9" TC Thermowell with Thermometer
- Sight Glass with Tri Clamp Fittings
- Dished bottom
- 12 gage construction
- Manway
- False Bottom
- Sparge Arm
